| 主要參數 | 性能 | 備注 | |
| 最小值 | 最大值 | ||
| 電源電壓（V） | 0 | 4.2 | 超過4.2V 永久燒毀模塊 |
| 阻塞功率（dBm） | - | 10 | 近距離使用燒毀概率較小 |
| 工作溫度（℃） | -40 | 85 | 工業級 |
| 主要參數 | 性能 | 備注 | ||
| 最小值 | 典型值 | 最大值 | ||
| 工作電壓（V） | 2 | 3.3 | 4.2 | ≥3.3V 可保證輸出功率 |
| 通信電平（V） | - | 3.3 | - | 使用5V電平有風險燒毀 |
| 工作溫度（℃） | -40 | - | 85 | 工業級設計 |
| 工作頻段（MHz） | 2402 | - | 2480 | 支持ISM 頻段 |
| 發射功率（dBm） | -30 | 0 | 11.5 | - |
| 接收靈敏度（dBm） | - | -97 | - | 空中速率為1Mbps |
| 休眠廣播電流 | - | 208 | - | 單位:uA。默認廣播間隙1S |
| 休眠連接電流 | - | 1 | - | 單位:mA。 |
| 喚醒廣播電流 | - | 3 | - | 單位：mA。默認廣播間隙為1S |
| 喚醒連接電流 | - | 3.58 | - | 單位：mA。 |

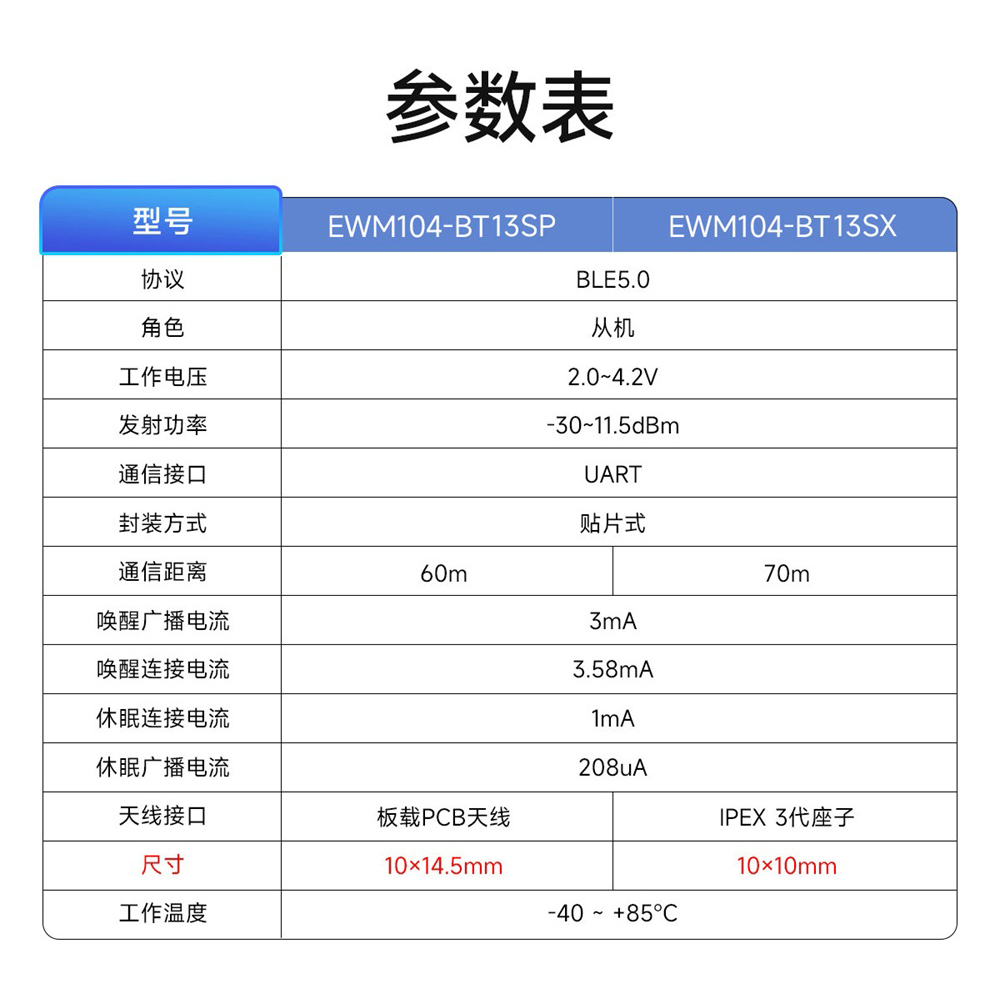

| 主要參數 | 描述 | 備注 |
| 藍牙協議 | BLE5.0 | - |
| 通信接口 | UART | - |
| EWM104-BT13SP通信距離 | 60m | - |
| EWM104-BT13SX通信距離 | 70m | - |
| 封裝方式 | 貼片式 | - |
| EWM104-BT13SP外形尺寸 | 14.5*10mm | ±0.2mm |

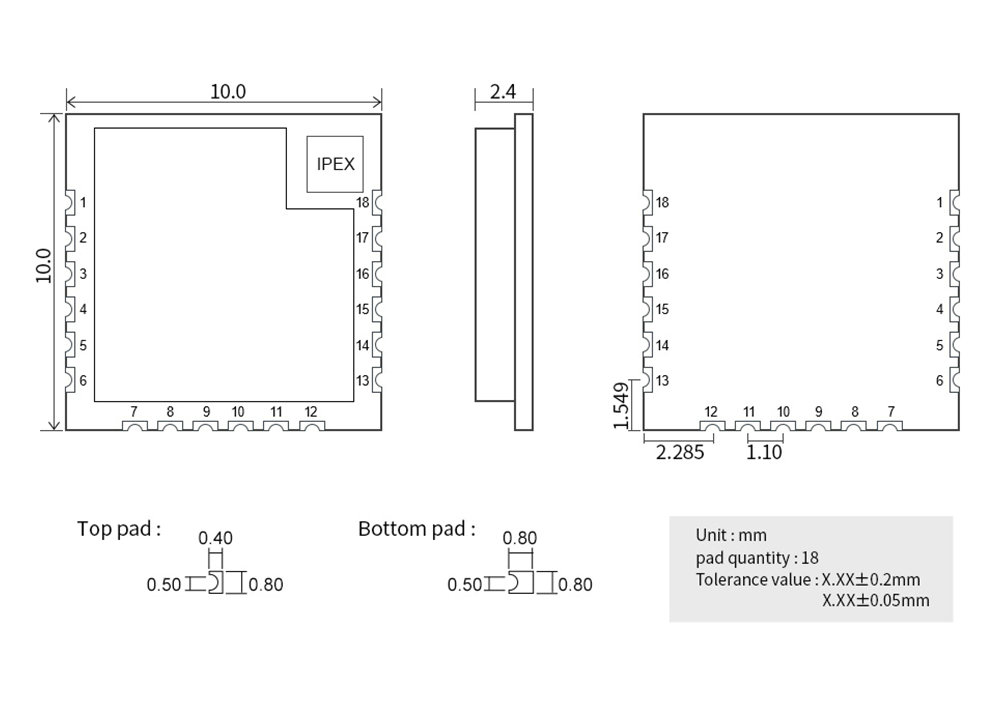

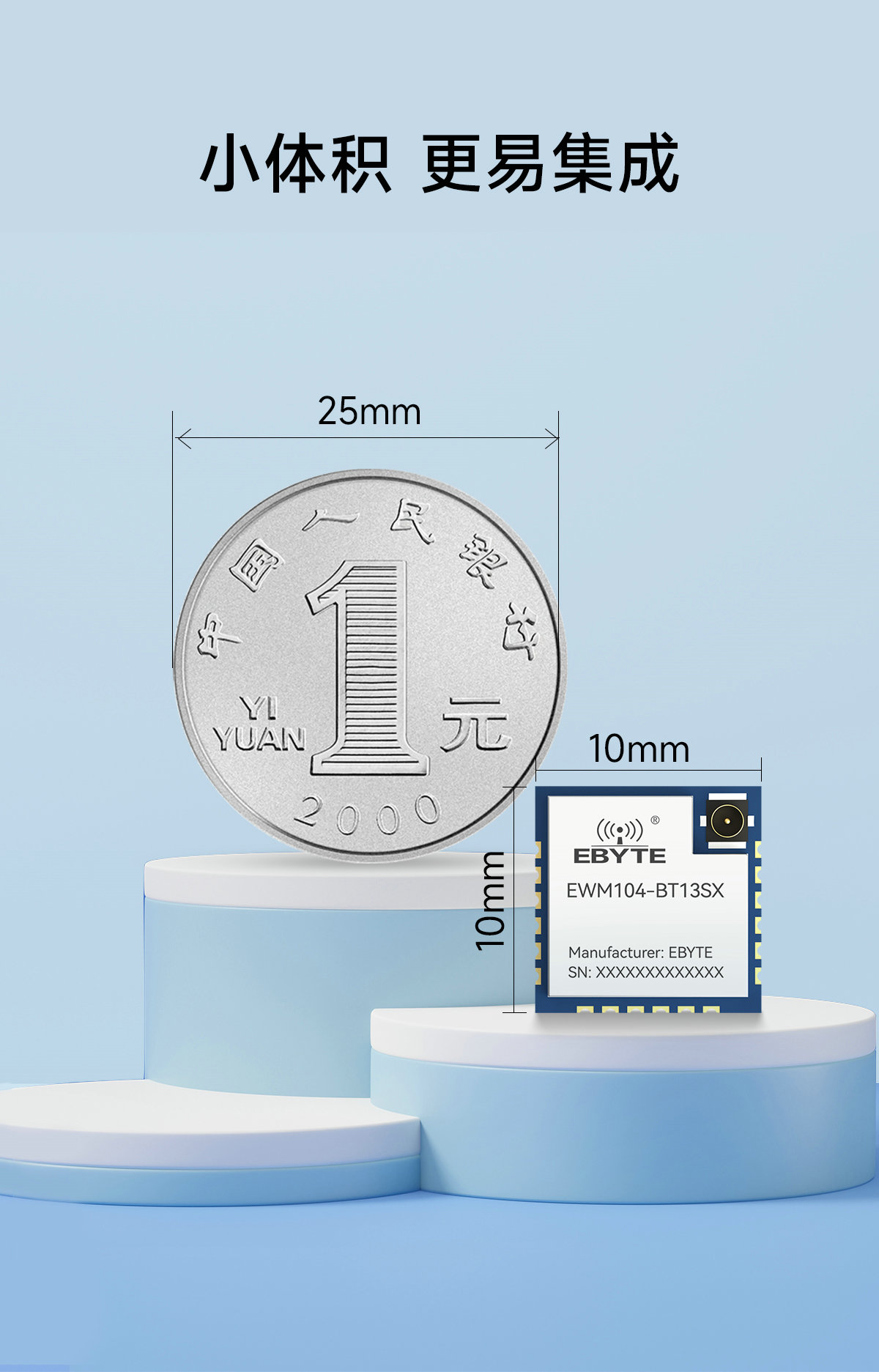

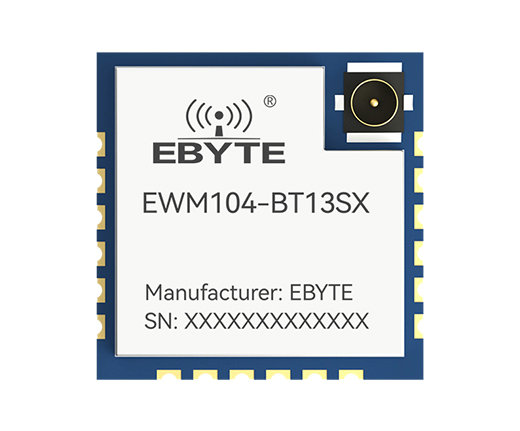

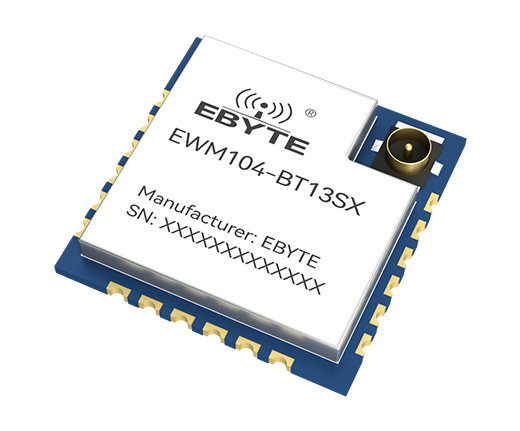

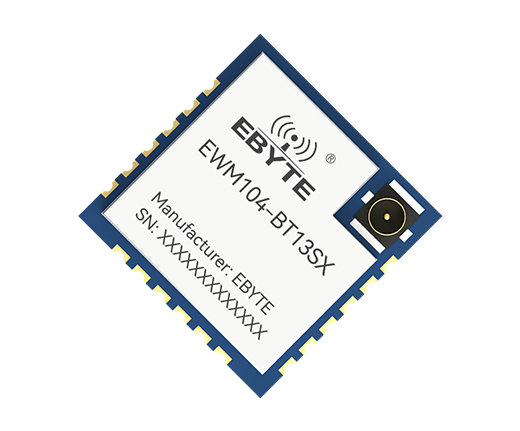

| EWM104-BT13SX外形尺寸 | 10*10mm | |
| EWM104-BT13SP射頻接口 | 板載天線 | 等效阻抗約50Ω |
| EWM104-BT13SX射頻接口 | IPEX 3代 | |
| 重量 | 0.5±0.1g | - |
| 序號 | 引腳定義 | 引腳方向 | 說明 |
| 1 | GND | -- | 電源地 |
| 2 | PD6 | -- | 預留GPIO，用戶無需關心 |
| 3 | PD7 | 輸入 | 內部上拉，下降沿，然后保持低電平至少5 秒后，所有參數恢復出廠設置并自動重啟模塊。 |
| 4 | PA3 | -- | SWS;程序下載引腳；用戶無需關心； |
| 5 | PA7 | 輸出 | 連接狀態指示引腳，高電平表示已連接，低電平表示斷開連接 |
| 6 | PB2 | 輸入 | 電池電壓檢測腳 |
| 7 | RST | 輸入 | 復位引腳,低電平復位 |
| 8 | WKP | 輸入 | 低電平低功耗模式； 高電平進入工作模式 |
| 9 | RXD | 輸入 | 串口輸入 |
| 10 | TXD | 輸出 | 串口輸出 |
| 11 | GND | -- | |
| 12 | VBAT | -- | 電源正極，2.0V~4.2V，推薦3.3V供電 |
| 13 | PB7 | 輸出 | 默認為低電平，有效電平為高； 長動和點動兩種模式；可以通過串口設置或是微信小程序配置；點動模式脈沖寬度支持10~65535ms的配置 |
| 14 | PC0 | 輸出 | 默認為低電平，有效電平為高； 長動和點動兩種模式；可以通過串口設置或是微信小程序配置；點動模式脈沖寬度支持10~65535ms的配置 |
| 15 | PC1 | 輸出 | 互補PWM輸出；可以通過串口設置或是微信小程序配置；長動或電動模式、頻率、占空比、（死區時間）、PWM時長（點動模式10~65535ms）； |
| 16 | PD2 | 輸出 | |
| 17 | PD1 | -- | 預留GPIO，用戶無需關心 |
| 18 | GND | -- | 電源地 |
